Concrete Floor Thickness Guidelines for Car Hoist Setup

Vital Considerations for Installing a Car Hoist in Your Garage Space

When you are planning to install a car hoist in your garage, it is essential to ensure that your concrete floor meets the required specifications. Having a robust and stable foundation is not only crucial for the effective operation of the hoist but also vital for the safety of your vehicles and anyone using the equipment. By adhering to preparation guidelines and installation standards, you can significantly enhance the performance and durability of the hoist, preventing potential hazards and prolonging its lifespan.

The majority of car hoists demand a concrete slab that is a minimum of 100mm (4 inches) thick. This specific thickness is critical as it ensures the even distribution of weight from both the vehicle and the hoist, which helps to reduce the risk of cracking or sinking over time. For heavier-duty hoists, it is advisable to opt for a thicker concrete slab, possibly reaching up to 150mm (6 inches), to guarantee optimal safety and performance.

Comprehensive Steps for Determining the Ideal Concrete Thickness for Your Car Hoist

The thickness of your concrete floor is a critical factor in the safe installation and operation of a car hoist. Numerous considerations must be taken into account when determining the appropriate depth for your slab to ensure it can handle the loads effectively during use. A thorough understanding of these elements can prevent costly errors and significantly enhance the safety of your garage setup, leading to a more secure and efficient operation.

Evaluating Load Capacity for Your Car Hoist Installation

When it comes to car hoists, they exert considerable stress on the concrete slab beneath them. Therefore, it is vital to understand the total weight your concrete floor must support. This evaluation includes not only the weight of the vehicle but also the weight of the hoist itself, which can add a substantial load to the existing floor structure.

On average, a standard passenger vehicle weighs between 1,500 to 2,000 kg, while the hoist may add an additional load of 500 to 1,000 kg. Furthermore, it is wise to include a margin for unexpected weight increases, ensuring that the structure can accommodate unforeseen circumstances without compromising safety.

For most residential garages, a concrete thickness between 100 mm and 150 mm is generally sufficient. However, if you plan on lifting significantly heavier vehicles, you should consider a thicker slab to ensure stability and safety during operation.

Consulting with a structural engineer is a prudent step, as they have the expertise to provide customized advice and assist in calculating the exact thickness required based on your specific circumstances and needs.

Examining Various Types of Car Hoists and Their Concrete Thickness Requirements

It is essential to understand that different types of car hoists have specific requirements regarding concrete thickness. Two-post lifts and four-post lifts are two popular choices among homeowners looking to add a car hoist to their garage setup.

Two-post lifts usually apply pressure at concentrated points, necessitating a thicker concrete slab, typically around 150 mm or more, to effectively accommodate the concentrated load and prevent structural issues.

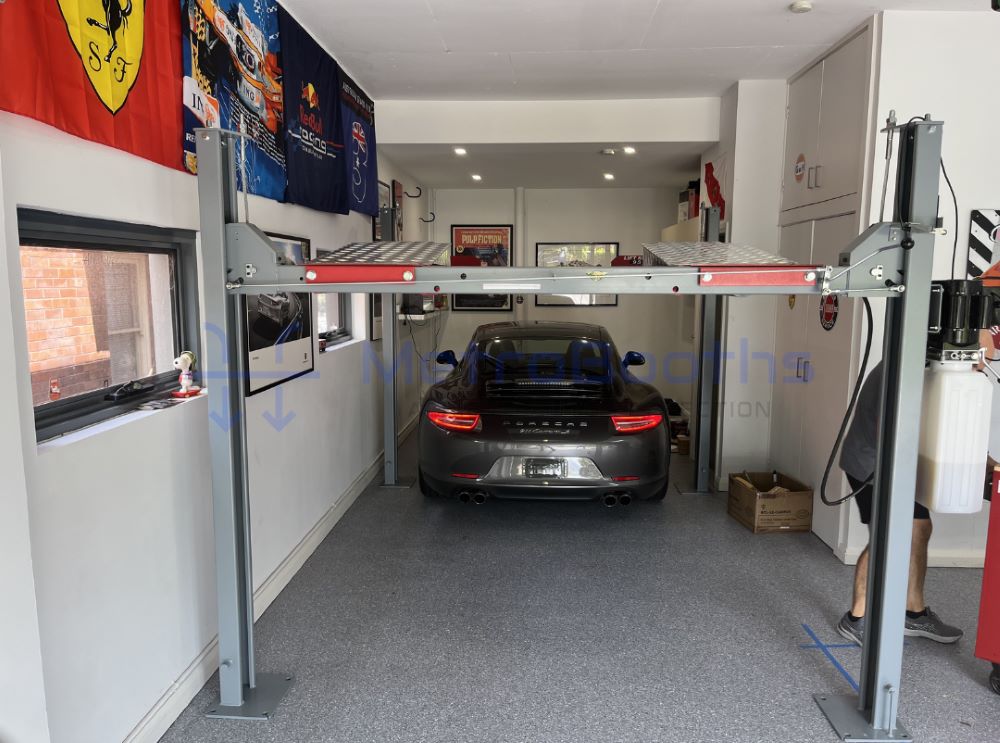

In contrast, four-post lifts distribute weight more evenly across a larger area, allowing them to operate effectively with a slightly thinner slab, usually within the range of 100 mm to 125 mm. This understanding is crucial for planning and installation processes.

Always refer to the manufacturer's specifications for the hoist you are considering, as they will typically outline the minimum concrete thickness required for safe operation. Following these guidelines is imperative for achieving optimal performance and ensuring the longevity of your hoist.

Keep in mind that these recommendations serve as general guidelines. Your specific requirements may differ based on the layout of your garage and the types of vehicles you intend to lift with the hoist.

Recognizing the Significance of Concrete Strength and Reinforcement Methods

The strength of your concrete is just as important as its thickness. Higher strength concrete can often be utilized at a thinner depth while still providing adequate support for substantial loads. This is particularly relevant when considering the installation of a car hoist in your garage.

It is advisable to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many experts in the industry suggest opting for concrete with a strength of up to 32 MPa for applications involving heavy-duty use and frequent lifting of vehicles.

Incorporating reinforcement techniques is essential for significantly boosting the durability of your concrete. Adding steel mesh or rebar can greatly enhance the overall strength of your concrete floor. Consequently, this may allow you to use a thinner slab while still ensuring it can effectively support heavy loads during operation.

For most home garages, SL82 mesh provides a reliable option. It offers adequate strength for the majority of car hoists without incurring excessive costs, making it an ideal choice for budget-conscious homeowners.

If you have concerns regarding potential cracking, consider incorporating fibers into your concrete mix. This inclusion can help mitigate the formation and spread of small cracks over time, thereby enhancing the longevity of your installation and ensuring a safer working environment.

Essential Installation Factors for Ensuring Successful Car Hoist Operation

When it comes to installing a car hoist, thorough site preparation and consistent floor maintenance are of utmost importance. By paying attention to concrete specifications and ensuring proper care of the floor, you can guarantee the safe and efficient operation of your hoist, ultimately protecting your investment and enhancing the functionality of your garage.

Critical Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Prior to installing your car hoist, it is crucial to ensure that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be completely level and devoid of any cracks to ensure optimal performance and safety during use.

For new concrete pours, utilizing steel reinforcing mesh and allowing the concrete to cure for a minimum of 28 days is essential. Furthermore, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability during operation.

Avoid positioning the hoist over expansion joints or weak areas of the concrete. If you have any doubts about the strength and integrity of your floor, it is highly recommended to consult a professional who can accurately assess its condition and provide guidance for the installation process.

Crucial Ongoing Maintenance After Your Car Hoist Installation

Once your car hoist is installed, it is essential to regularly monitor the condition of the concrete surrounding it. Pay close attention to any cracks, chips, or signs of stress, and address any issues promptly to prevent larger complications that could affect the functionality of your hoist.

Quickly cleaning up any oil or fluid spills is vital, as these substances can weaken the concrete over time and lead to serious structural issues. Furthermore, consider using protective mats under the lift arms to reduce wear and tear on the floor, thereby extending its lifespan.

Regularly checking the tightness of the anchor bolts is a simple yet crucial maintenance step, as loose bolts can damage the concrete and make the hoist unsafe for operational use. This proactive approach can prevent costly repairs and ensure safe and effective usage of your hoist.

Consider applying a sealant to the concrete to protect against stains and moisture. Such protective measures can significantly extend the life of your concrete floor while also enhancing its appearance, making it a worthwhile investment for any garage owner.

Commonly Asked Questions Regarding Car Hoist Installation and Concrete Specifications

The installation of a car hoist requires careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address several frequently asked questions concerning the concrete requirements for several types of lifts.

What is the recommended minimum concrete thickness for a two-post lift installation?

For a two-post lift, the generally recommended minimum thickness for the concrete slab is 100mm. This depth provides sufficient strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer's specifications, as specific models may necessitate thicker slabs for safe operation.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist requires a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It is advisable to have a professional evaluate your floor to ensure that it meets the hoist's installation requirements, providing you with peace of mind.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is typically capable of supporting the weight of most passenger vehicles and light trucks when used with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement utilized. It’s advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following essential factors:

1. The weight of the heaviest vehicle you plan to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used alongside the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the proper installation and setup of your hoist to maximize safety and efficiency in your garage environment.
